文章目錄

1. 1. 將 app 服務跟 traefik 連結

昨天我們成功在
http://ec2-52-199-213-167.ap-northeast-1.compute.amazonaws.com:8080/api/rawdata 成功看到 API 原始資料，那今天首先就先去 http://ec2-52-199-213-167.ap-northeast-1.compute.amazonaws.com:3000 看看

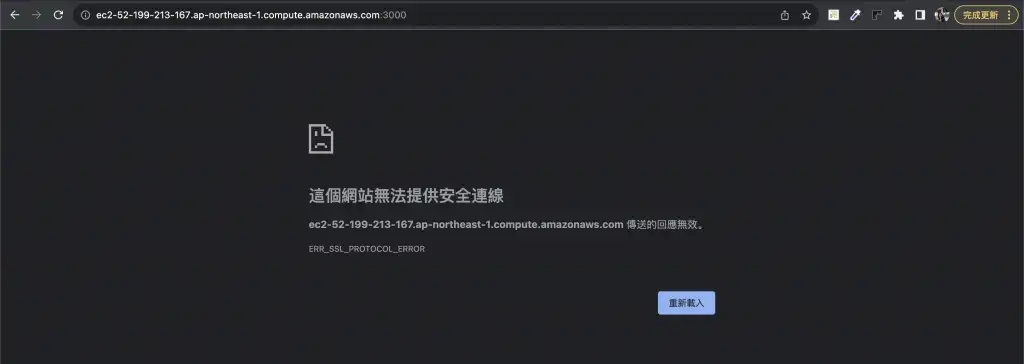

因為昨天有 –build 的關係，所以會跑出這個需要我們建 db 是預料中的。到這邊為止目前看起來都沒有異常，但我們一開始使用 traefik 是因為我們需要將網址從 http 變成 https ，所以我們將網址改為 https://ec2-52-199-213-167.ap-northeast-1.compute.amazonaws.com:3000 再試一次

去看看 log

HTTP parse error, malformed request: #<Puma::HttpParserError: Invalid HTTP format, parsing fails. Are you trying to open an SSL connection to a non-SSL Puma?>

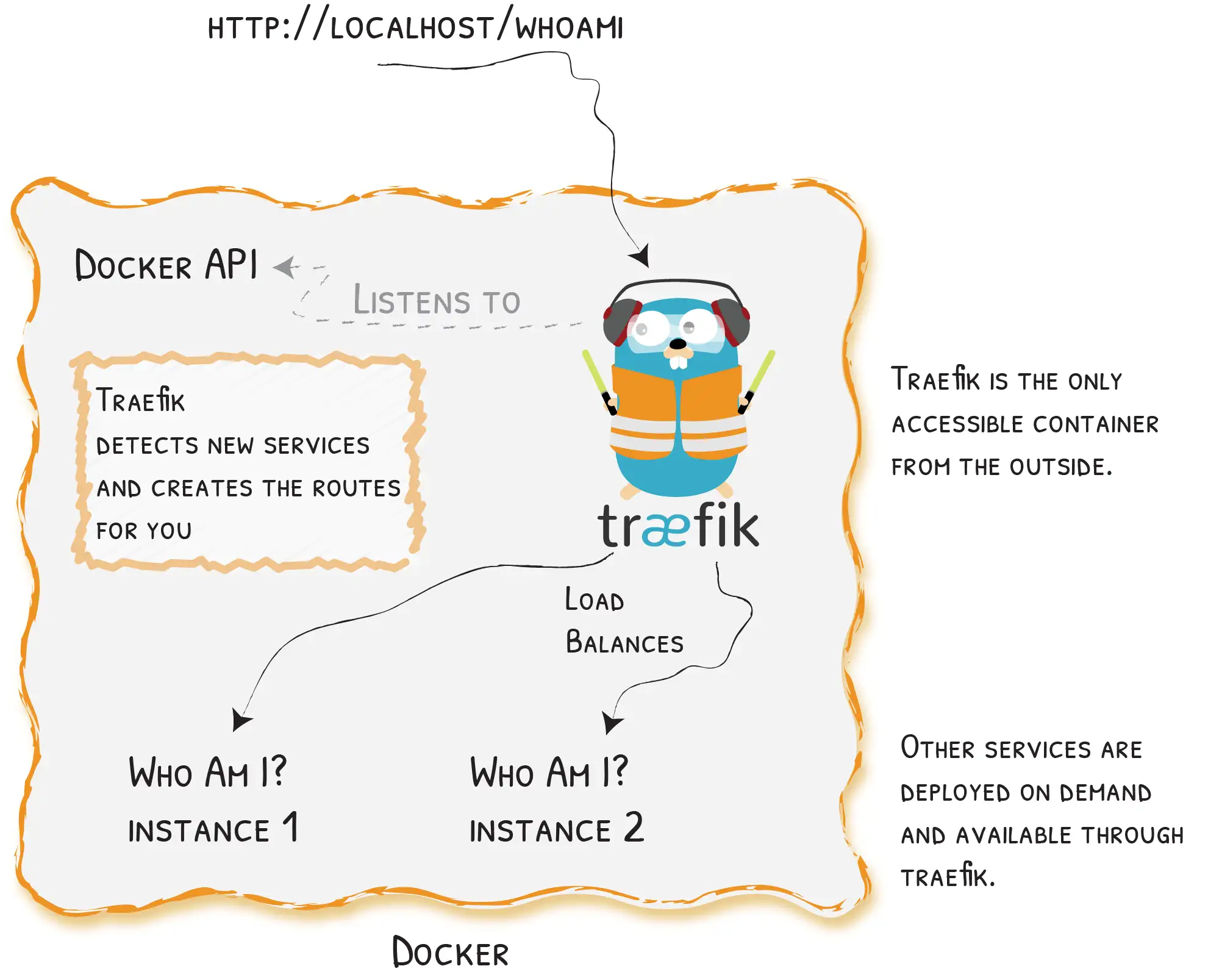

可以猜測這應該是一個無效的 http 請求，為甚麼會無效呢？我重新看一下 官網 的圖片

可以看到交警伯伯 traefik ，當我們訪問網址時，會找到交警伯伯，但是我們好像還沒有將我們這個網址的服務 app 跟他做連結，所以我需要先將我的 app 服務與 traefik 做個連結

將 app 服務跟 traefik 連結

我找到一篇蒼時弦也的 Rails 部署實踐 - 使用 HTTPS 協定加密連線 與我要達成的目標相近，所以參考這篇文章並將其改為符合我專案的樣子，目前 docker-compose.yml 長成如下：

version: "3.9"
services:
  app:
    image: krystallll/docker_test:1.0
    environment:
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: password
      POSTGRES_HOST: db
      POSTGRES_PORT: 5432
    restart: on-failure
      # ports:
      # - 80:3000
    labels:
    - "traefik.enable=true"
    - "traefik.http.services.app.loadbalancer.server.port=3000"
    - "traefik.http.routers.app.rule=Host(`ec2-52-199-213-167.ap-northeast-1.compute.amazonaws.com`)"
    - "traefik.http.routers.app.entrypoints=web"
    - "traefik.http.routers.app.tls=true"
    - "traefik.http.routers.app.tls.certresolver=letsencrypt"
  db:
    image: postgres:14-alpine
    restart: on-failure
    environment:
      POSTGRES_PASSWORD: password
  traefik:
    image: traefik:v2.10
    command:
      - "--api.insecure=true"
      - "--providers.docker=true"
      - "--providers.docker.exposedbydefault=false"
      - "--entrypoints.web.address=:80"
      - "--entrypoints.websecure.address=:443"
      - "--certificatesresolvers.letsencrypt.acme.httpchallenge=true"
      - "--certificatesresolvers.letsencrypt.acme.httpchallenge.entrypoint=web"
      - "--certificatesresolvers.letsencrypt.acme.email=krystal@5xcampus.com"
      - "--certificatesresolvers.letsencrypt.acme.storage=/letsencrypt/acme.json"
    ports:
      - "80:80"
      - "443:443"
      - "8080:8080"
    volumes:
      - "./letsencrypt:/letsencrypt"
      - /var/run/docker.sock:/var/run/docker.sock

這邊將原本 middlewares 有關的都先拿掉，一方面是因為我在下方的錯誤訊息裡撞牆了好久

ec2-user-traefik-1 | time=”2023-10-10T17:54:19Z” level=error msg=”middleware "https-redirect@docker" does not exist” entryPointName=web routerName=app-http@docker

另外也因為，希望是先用最簡化的方式教大家部署，一種先求有再求好的心態，所以我這邊就先移除 middlewares。

當我重新 docker-compose up 時，終於脫離上述的錯誤泥沼中，看到新的錯誤

ec2-user-traefik-1 | time=”2023-10-10T18:40:38Z” level=error msg=”Unable to obtain ACME certificate for domains "ec2-52-199-213-167.ap-northeast-1.compute.amazonaws.com": unable to generate a certificate for the domains [ec2-52-199-213-167.ap-northeast-1.compute.amazonaws.com]: acme: error: 400 :: POST :: https://acme-v02.api.letsencrypt.org/acme/new-order :: urn:ietf:params:acme:error:rejectedIdentifier :: Error creating new order :: Cannot issue for "ec2-52-199-213-167.ap-northeast-1.compute.amazonaws.com": The ACME server refuses to issue a certificate for this domain name, because it is forbidden by policy” ACME CA=”https://acme-v02.api.letsencrypt.org/directory“ routerName=app@docker rule=”Host(ec2-52-199-213-167.ap-northeast-1.compute.amazonaws.com)” providerName=letsencrypt.acme

看起來像是他無法發給我證書的錯誤訊息，那我們明天繼續來找找為何會無法發放吧！
